How Does an Engraving Machine Work?
2025-08-01
An Engraving Machine is a computer-controlled system that carves, etches, or cuts designs into materials using specialized tools. At BoDiao, we engineer these systems to transform digital designs into physical products with micron-level accuracy across metals, plastics, wood, and composites.
Core Working Principles
-
Digital Design Processing
- CAD/CAM software converts vector/raster graphics into toolpaths (G-code).
- Our factory-developed BoDiao AiCut Pro™ software auto-optimizes cutting sequences.
-
Precision Motion Control
- Stepper/servo motors drive XYZ-axis movement (±0.01mm repeatability).
- Linear guides withstand 20G acceleration forces during high-speed engraving.
-
Material-Specific Tooling
- Diamond Drag Stylus: Scratches hardened metals without heat (5–15N force).
- Spindle Routers: 24,000 RPM carbide bits mill aluminum/acrylic.
- Laser Modules: 20W–100W CO2/fiber sources vaporize surface layers.

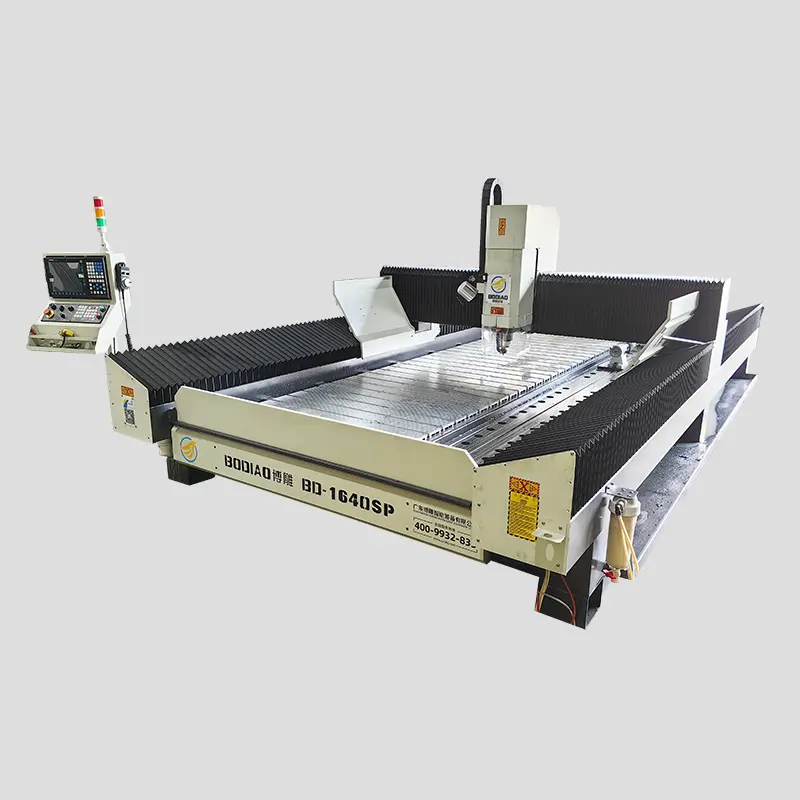

BoDiao Engraving Machine Technical Specifications
Industrial-Grade Performance Metrics
| Parameter | Entry Series | BoDiao Pro Series | Industrial Elite |
|---|---|---|---|
| Work Area | 300×200mm | 600×900mm | 1300×2500mm |
| Positioning Accuracy | ±0.1mm | ±0.05mm | ±0.02mm |
| Max Speed | 5m/min | 15m/min | 30m/min |
| Spindle Power | 800W DC | 2.2kW Air-Cooled | 5.5kW Water-Cooled |
| Software | Basic GRBL | BoDiao AiCut Pro™ | HyperUCC Suite |
| Compatibility | Wood/Acrylic | Metals/Wood/Composites | Titanium/Ceramics |
| Certifications | CE, RoHS | ISO 9001, CE, UL | CE, ISO 13849, UL |
Key Features Developed in Our Factory:
- Dynamic Power Adjustment: Auto-detects material density to prevent tool breakage
- Multi-Tool Autochanger: 6-position carousel for combined engraving/cutting
- IoT Connectivity: Real-time performance monitoring via BoDiao®
How Does an Engraving Machine Work? – FAQ
Q1: What maintenance ensures consistent engraving precision?
A1: In our systems:
- Daily: Clean linear rails with IPA, check spindle runout (max 0.01mm)
- Weekly: Lubricate ball screws (VG68 grease), calibrate tool sensors
- Monthly: Replace air filters, validate axis squareness (0.02mm/m tolerance)
Q2: Can one machine handle both deep cutting and surface engraving?
A2: Yes. BoDiao machines feature:
- Z-axis travel: 100–200mm (standard) / 300mm (industrial)
- Automatic depth control: Adjusts from 0.05mm etching to 20mm cutting
- Pressure-sensitive drag engravers: Switch modes without tool changes
Q3: How are complex 3D designs engraved on curved surfaces?
A3: With our 4th-axis rotary attachments:
- Synchronizes spindle rotation with XYZ movement
- Holds cylindrical objects (ø20–300 mm) via stepper-controlled chucks
- Maintains ±0.1° angular precision during helical toolpaths
Why Industry Leaders Choose BoDiao
- Rigid Construction: Granite-reinforced bases absorb vibration (<0.003mm resonance)
- Smart Diagnostics: Predictive maintenance alerts reduce downtime by 40%
- Global Support: 36-hour technical response via our engineering hubs
Equip your workshop with award-winning Engraving Machine technology. For any inquiries, please reach out to us at [email protected].
