How Does the 2P DC MCCB Improve Safety in DC Power Systems?

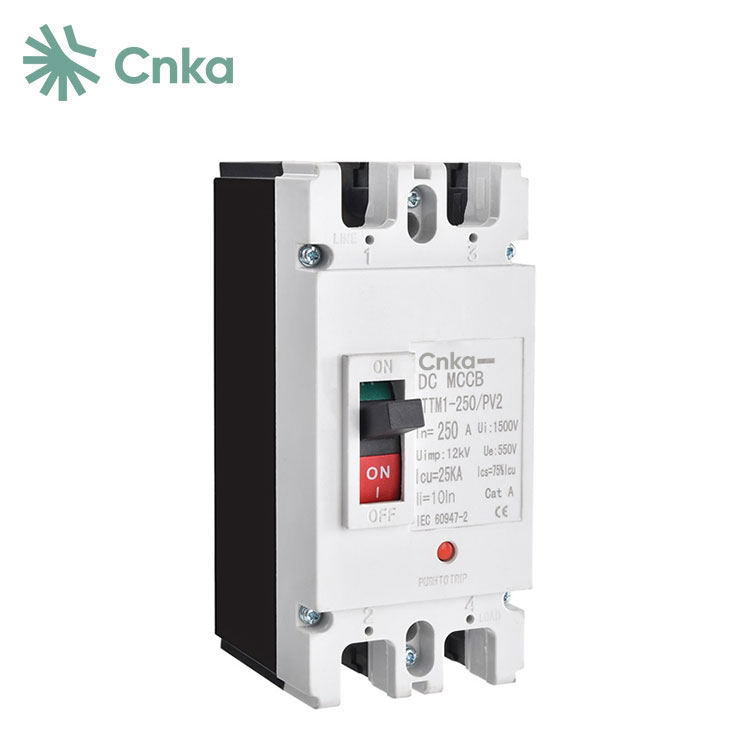

The 2P DC MCCB is an essential component designed specifically for direct current (DC) systems, capable of handling currents up to 1250A and voltages reaching 1500V. This type of molded case circuit breaker complies with stringent international standards such as IEC 60947-2 and GB 14048.2, which ensures it meets safety and performance requirements crucial for modern electrical installations.

In applications where reliable power distribution and circuit protection are paramount, the 2P DC MCCB stands out for its high breaking capacity and robust insulation performance. These characteristics make it highly suitable for environments that demand strict safety measures and durability under challenging conditions. The device is built to comply with pollution level III standards, which means it can operate effectively in environments where contaminants like dust and moisture are present, maintaining consistent functionality without compromise.

The operating mechanism of this circuit breaker allows for rapid closing and segmented trip functions, enhancing its responsiveness to fault conditions. This quick reaction capability is vital in preventing damage to connected equipment and reducing the risk of electrical hazards. Additionally, the 2P DC MCCB is designed to function reliably at altitudes up to 2000 meters, making it adaptable to a variety of geographic and climatic conditions.

The design also incorporates user-friendly features such as a clear indicator window, which uses red and green lights to show the breaker’s status at a glance. This visual cue helps operators quickly determine whether the circuit is energized or has tripped. To further enhance safety, the breaker includes a reset button that allows for safe detection of trip events and ensures the circuit is secure before restoring power.

Constructed mainly from thermosetting resin, the shell of the 2P DC MCCB is flame retardant, providing an additional layer of protection against fire hazards. The inclusion of accessories such as arc partitions and fixing screws ensures stable installation and effective arc management during breaker operation, contributing to both safety and longevity.

Overall, the 2P DC MCCB is a reliable solution for DC power protection, offering high performance and safety in demanding electrical distribution systems. Its thoughtful design and compliance with international standards make it an ideal choice for industries and installations that require dependable circuit protection under high voltage and current conditions.
